iTE | SKU: 100113H T2 L2

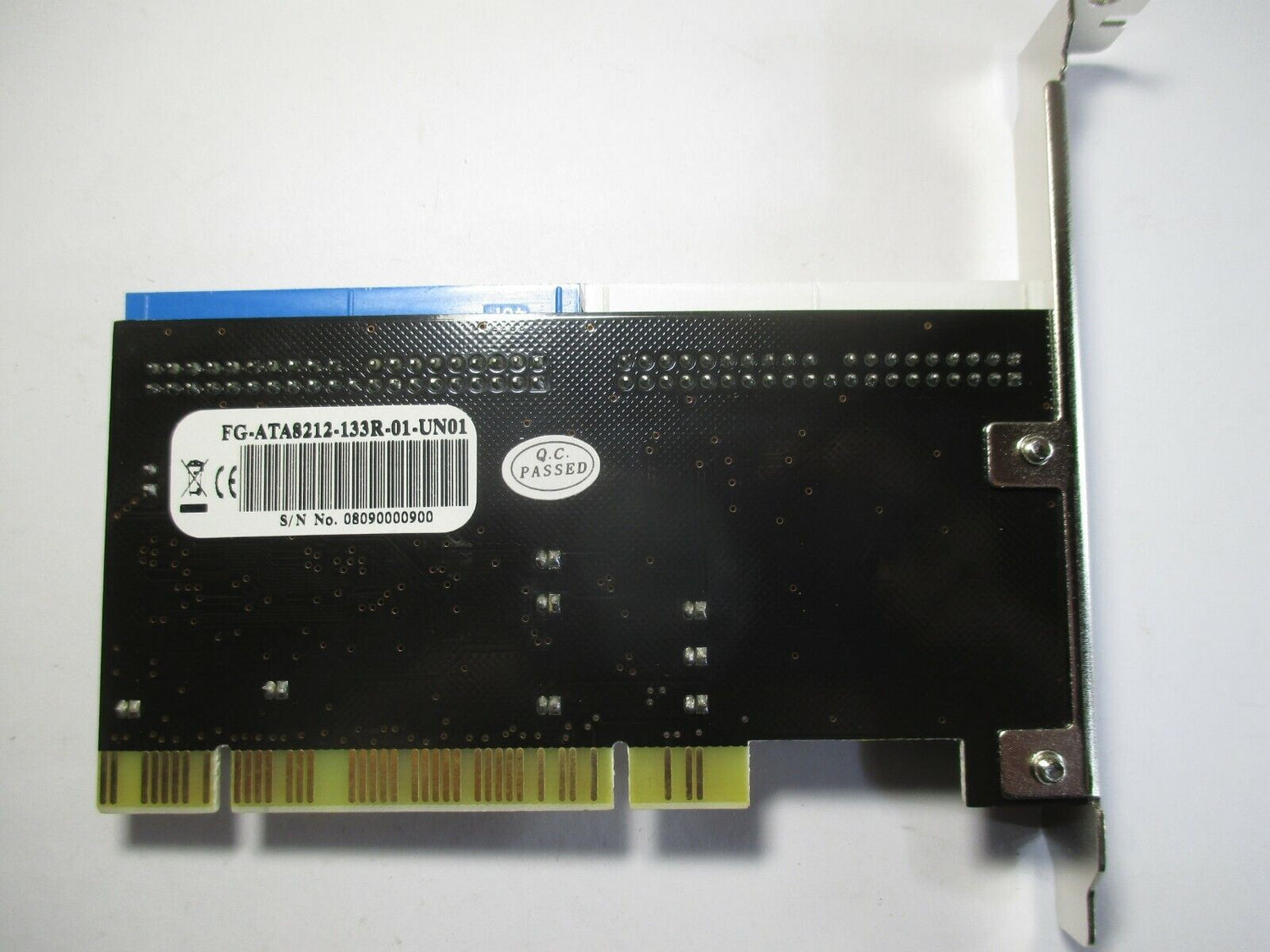

PCI IDE RAID CONTROLLER: PATA RAID Controller Card (2-Ports) iTE ATA8212-133R

Name: PCI IDE RAID CONTROLLER: PATA RAID Controller Card (2-Ports) iTE ATA8212-133R
Brand: iTE
SKU: 100113H T2 L2
Price: 59.00 AUD
Availability: InStock

$59.00

Shipping calculated at checkout.

Special Notice Regarding I/O Expansion Cards:

“All Parts are Guaranteed. The I/O Expansion Cards sold by Xdeal mostly are never used excess floor stock. There may be superficial imperfections due to items having been on display.”

Delivery and Shipping

We pride ourselves with picking and shipping the next day

We do appreciate you looking around our shop! Thank you, and continue to have a great day!

Installing an I/O Card after Confirming the Card Matches the Slot (PCI PCIe Other)

To install an I/O card, ensure the power is off, open the computer case, locate the appropriate slot, align the card with the slot, gently push it in until it clicks, secure it with a screw or clip, and then close the case.
Here's a more detailed breakdown of the process:
1. Preparation:
Power Down and Disconnect:
Turn off the computer and unplug the power cord to prevent any electrical hazards.
Open the Computer Case:
Remove the side panel of your computer case to access the internal components.
Identify the Slot:
Locate the appropriate expansion slot for the I/O card. This might be a PCI, PCIe slot or another type of slot specific to your system.
2. Installation:
Align the Card: Carefully align the I/O card with the selected slot, ensuring that the connectors match.
Insert the Card: Gently push the I/O card into the slot until it clicks into place.
Secure the Card: If necessary, secure the card with a screw or clip on the back of the case.
3. Finishing Touches:
Close the Case: Reattach the side panel of the computer case.
Reconnect Power: Plug the power cord back in.
Turn on the computer and Install Drivers if required. Test: Verify that the I/O card is functioning correctly.

Description

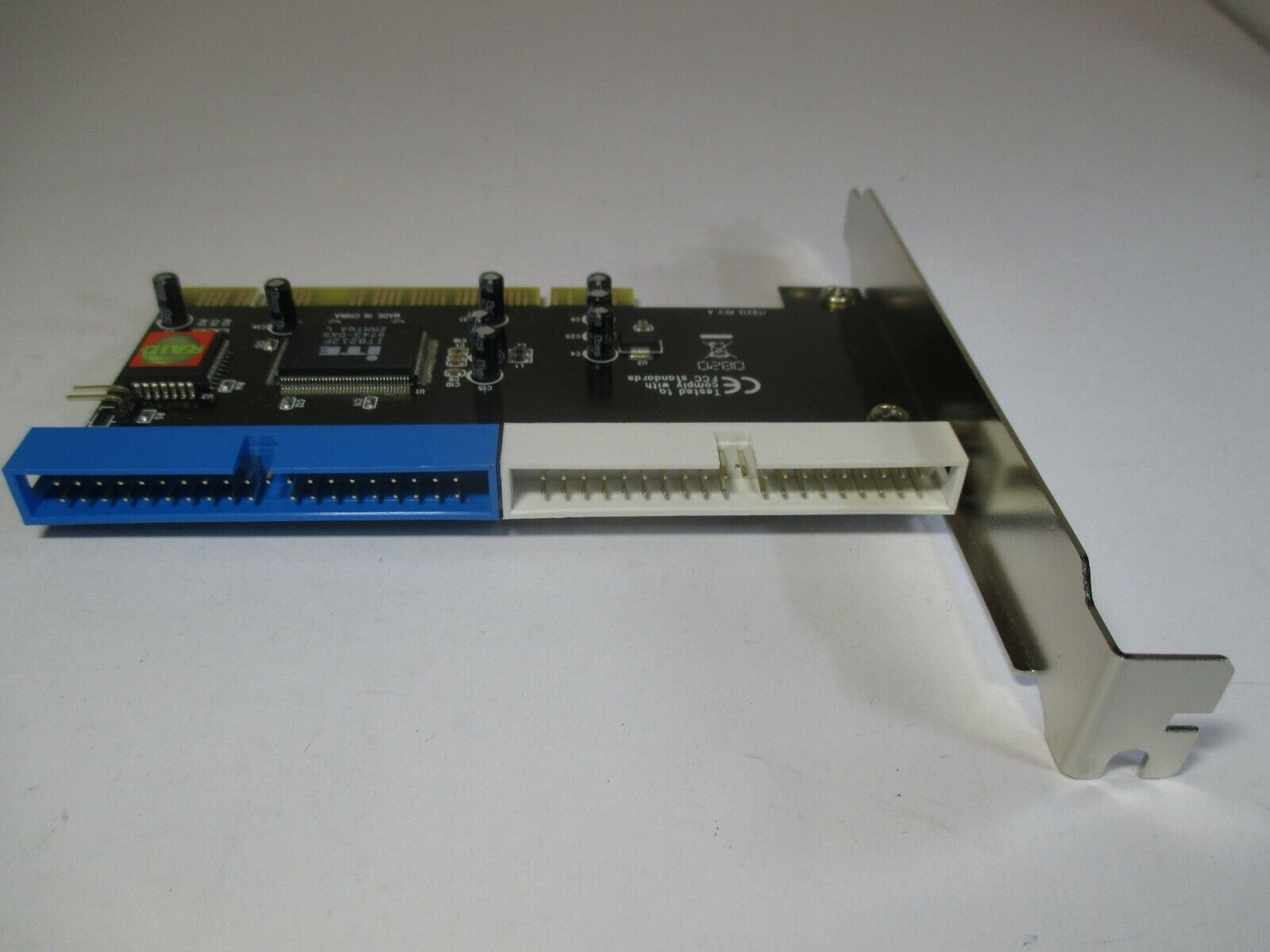

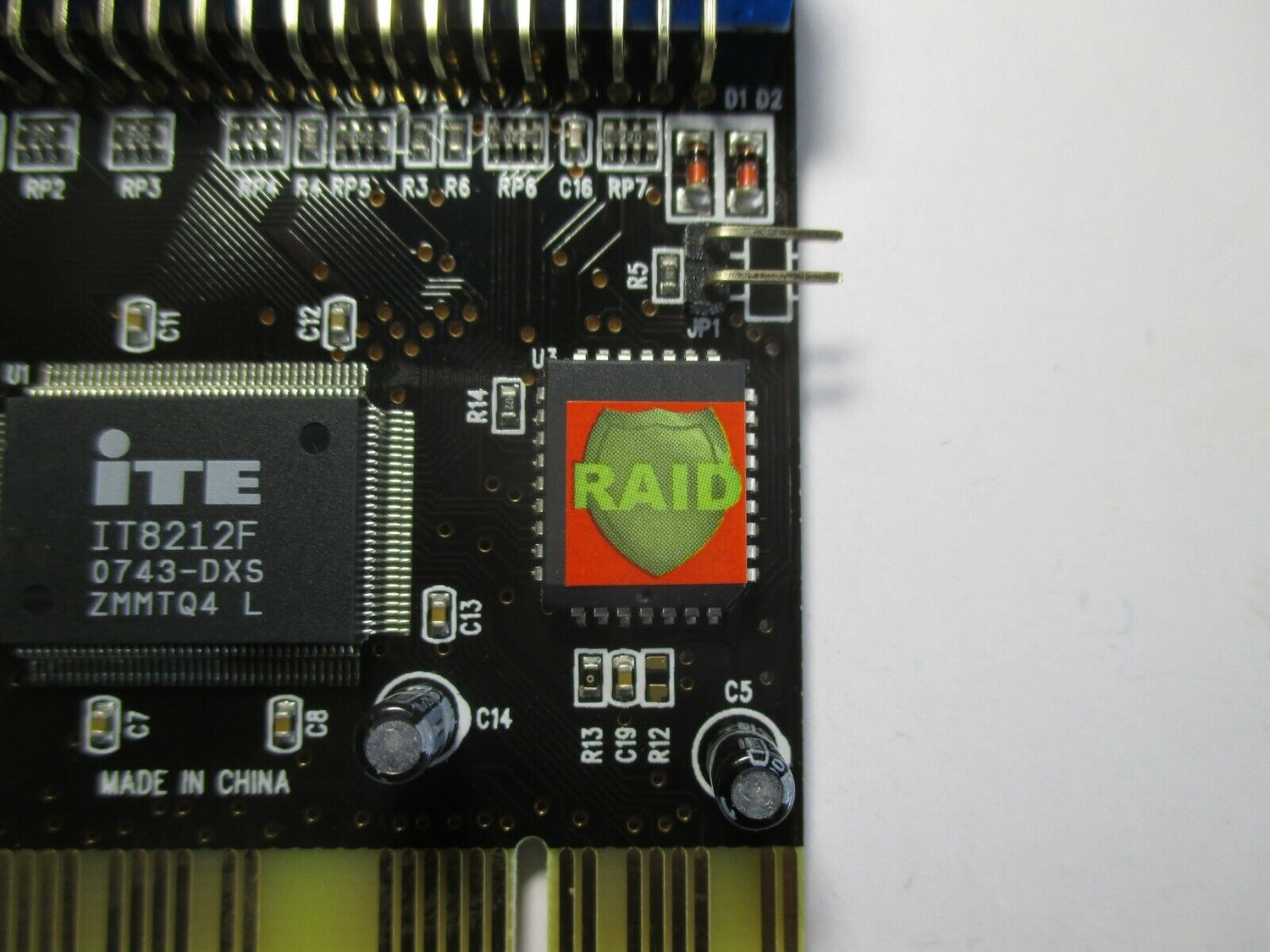

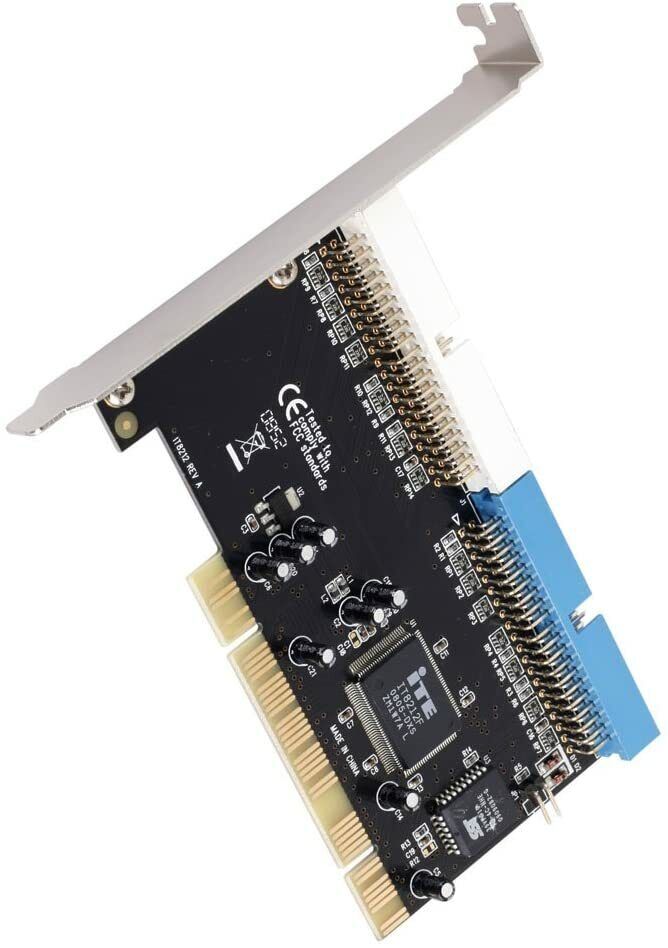

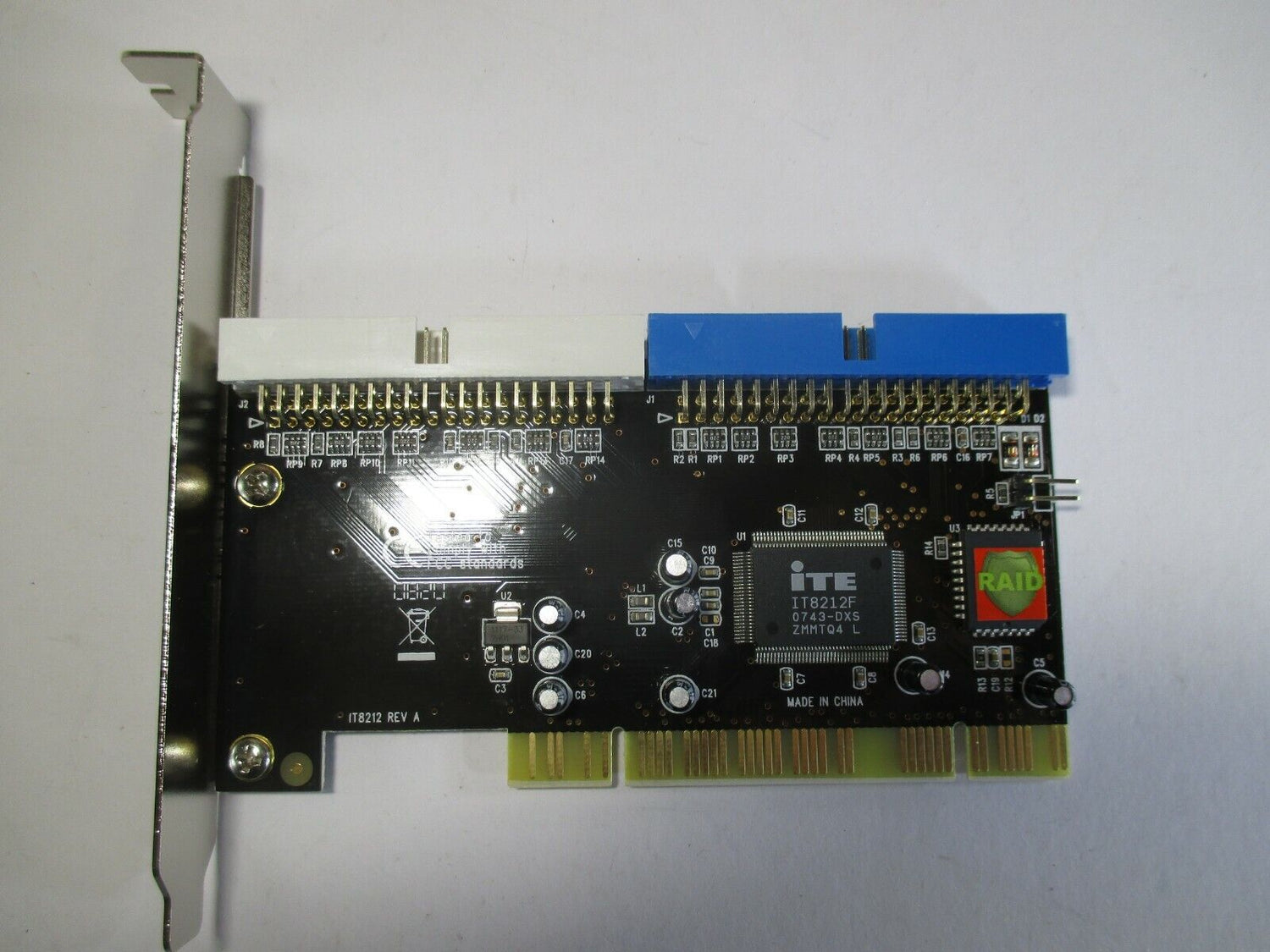

PCI IDE RAID CONTROLLER: PATA RAID Controller Card (2-Ports) iTE ATA8212-133R (Xsonic)

Introduction
Ultra ATA133 2-Ports with 133Mb/s

Features
Software RAID 0, 1 and 0+1 (Optional)
Automatic Performance Tuning for Each Device Attached
2-Internal Ultra ATA 133 Ports

Specification

General
PCI 32-bit 33MHz Interface Compliant with PCI Specification Revision 2.2
Support PCI Bus-Master Access
Fully Plug & Play Compatible
Driver supported MS Windows 98SE/ME/NT 4.0/2000/XP, Linux

Parallel ATA Interface
ATA/ATAPI-6, UDMA6 ATA/133 Compliant
Maximum Data Transfer Rate: 133MB/Sec
Automatic Performance Tuning for Each Device Attached
Fully Backwards Compatible with Ultra ATA/100, Ultra ATA/66, Ultra ATA/33, EIDE/Fast ATA-2, IDE and ATAPI Devices
2-Channels IDE Interface Supporting 4-IDE Devices, Co-Exist with On-Board IDE Interface

RAID Function (Optional)
Supports Software RAID 0 (Striped), RAID 1 (Mirror), and RAID 0+1
Supports Co-Exist RAID Set and Non-RAID HDD
Allows HDDs with Different Sizes to be Configured in a RAID Set
Adjustable Stripe Size for RAID 0 and 0+1

Supported Devices
Hard Drives, ATAPI CDROM, DVD ROM, CD-R, CD-RW, LS-120, MO, Tape and ZIP Devices

System Requirement

PC computer with one 32-Bit PCI slot
Supported OS

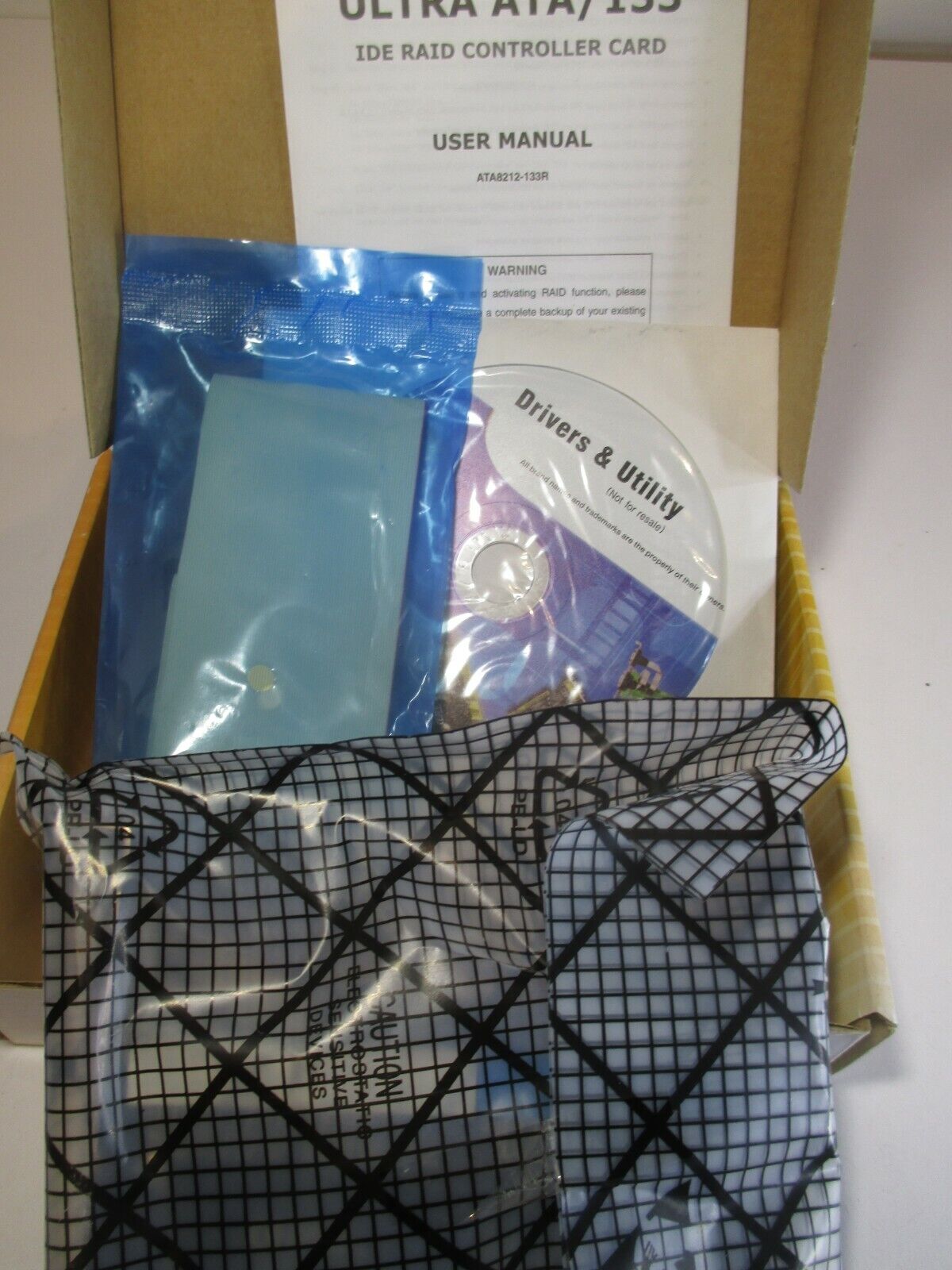

Package Content

PCI PATA 2-Port Controller Card
Ultra ATA/133 Cable x 1
User manual x 1
Software CD Driver x 1
