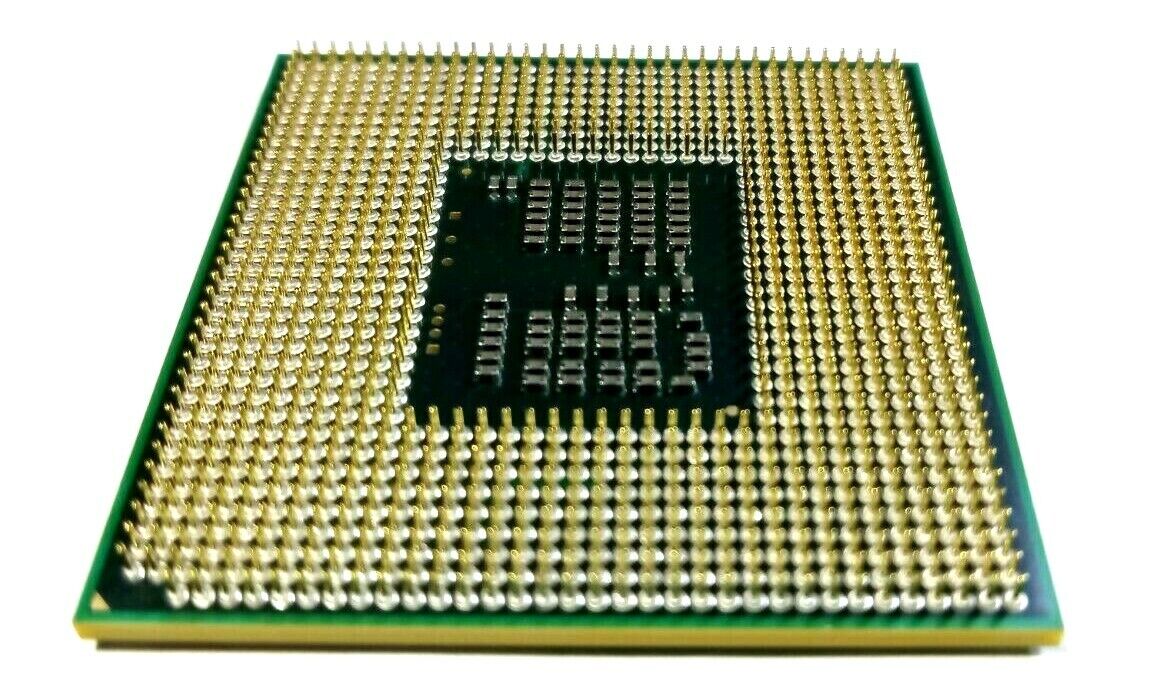

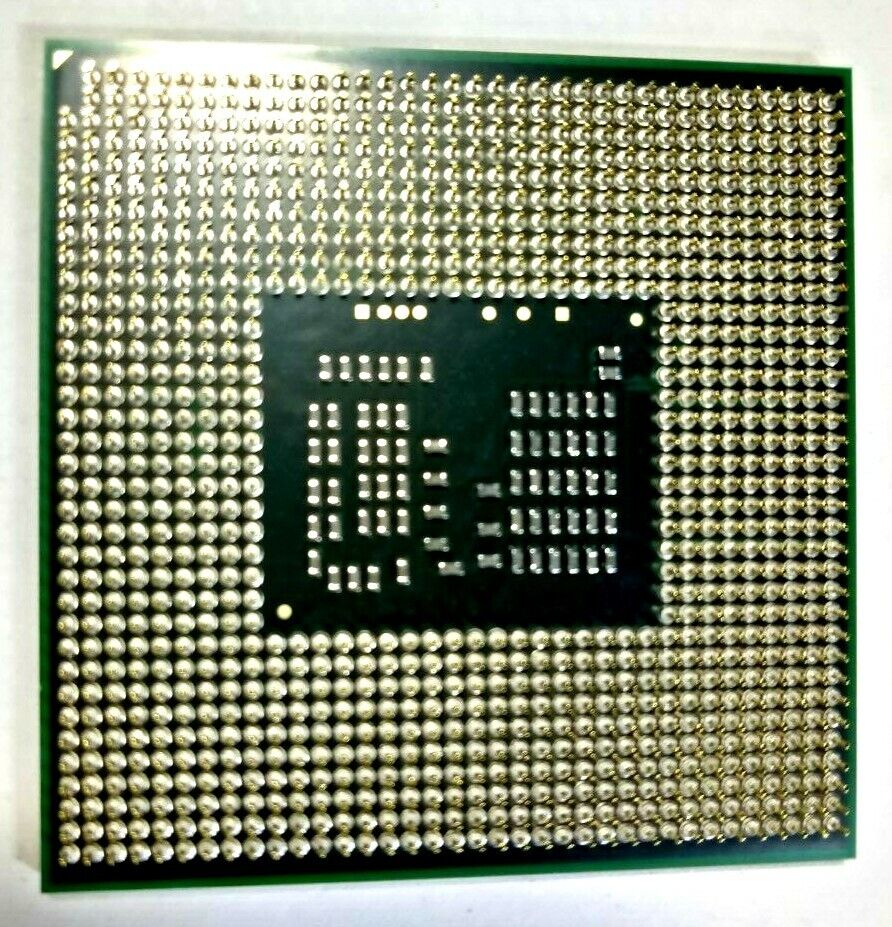

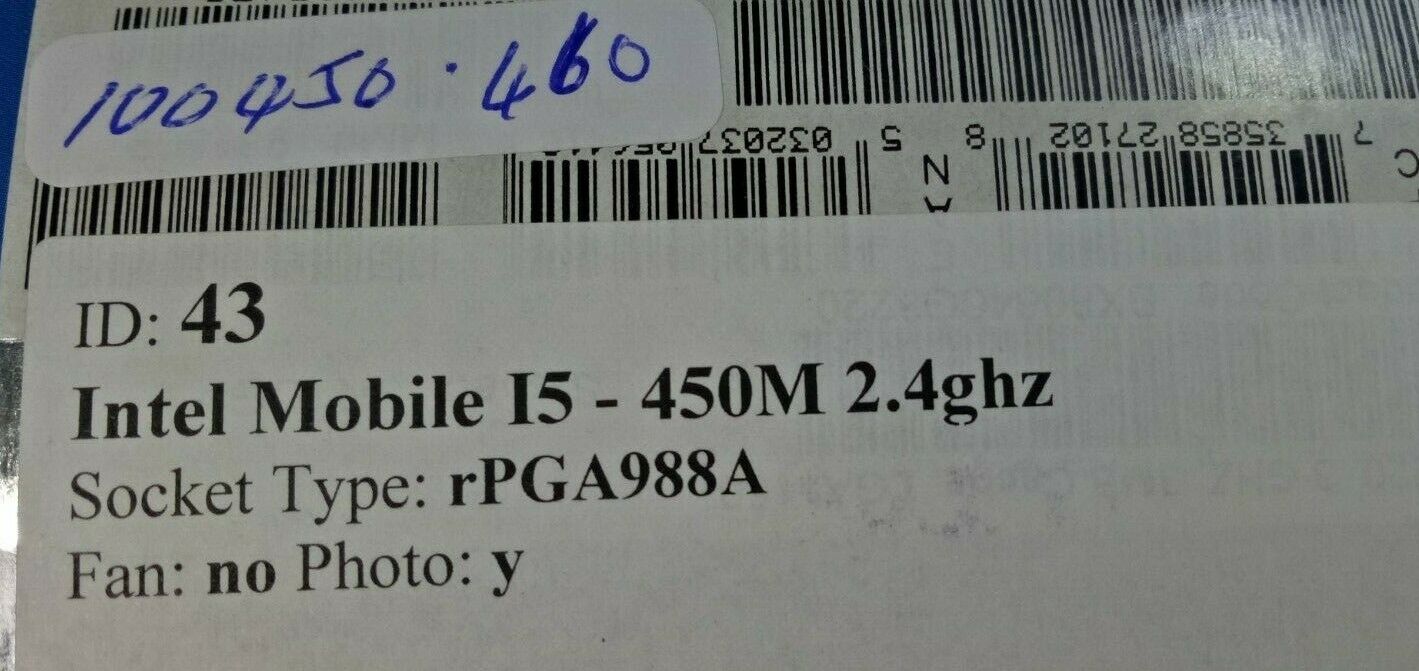

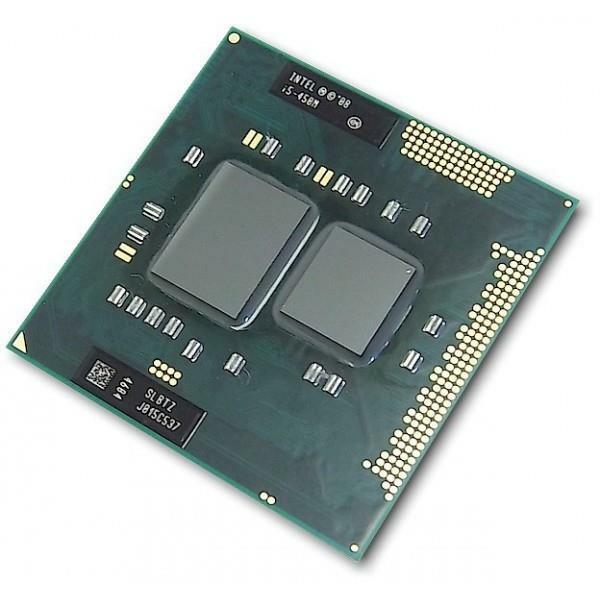

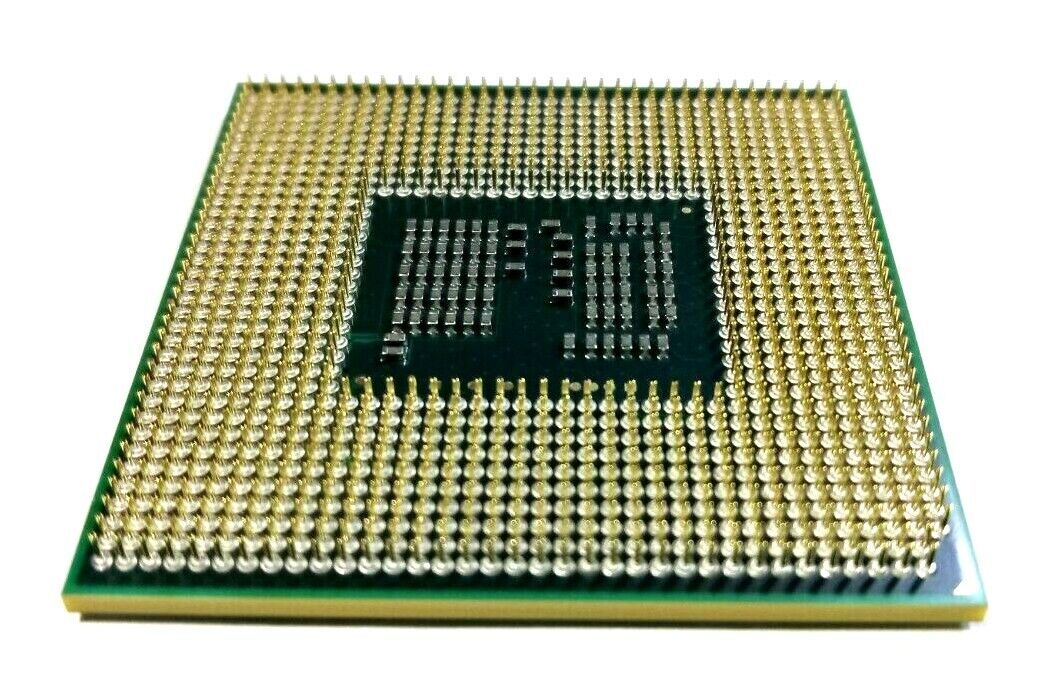

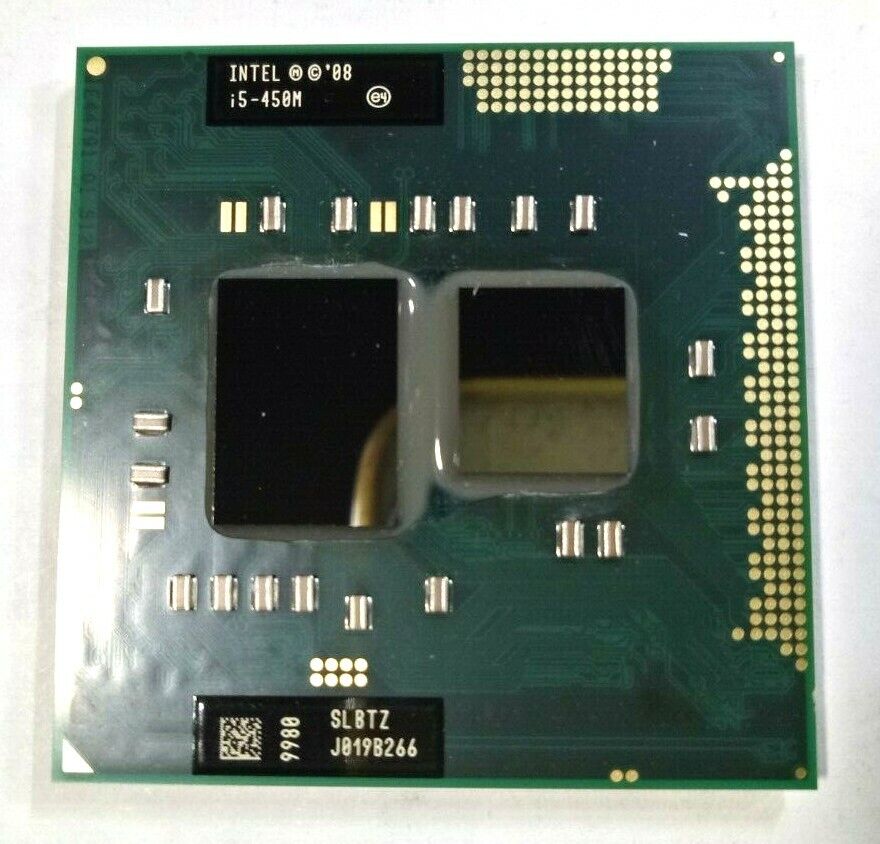

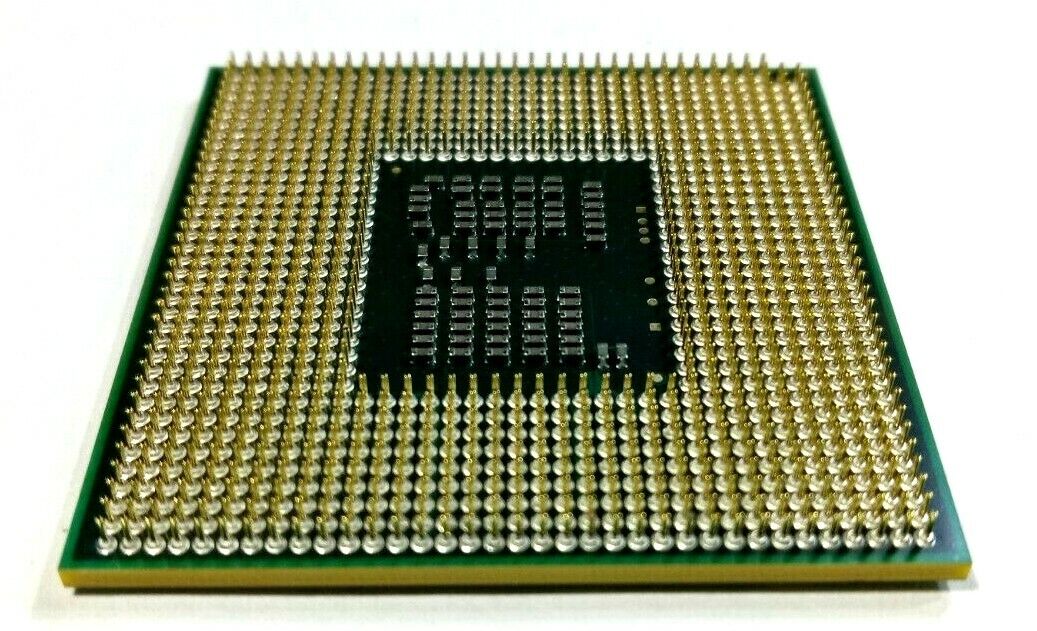

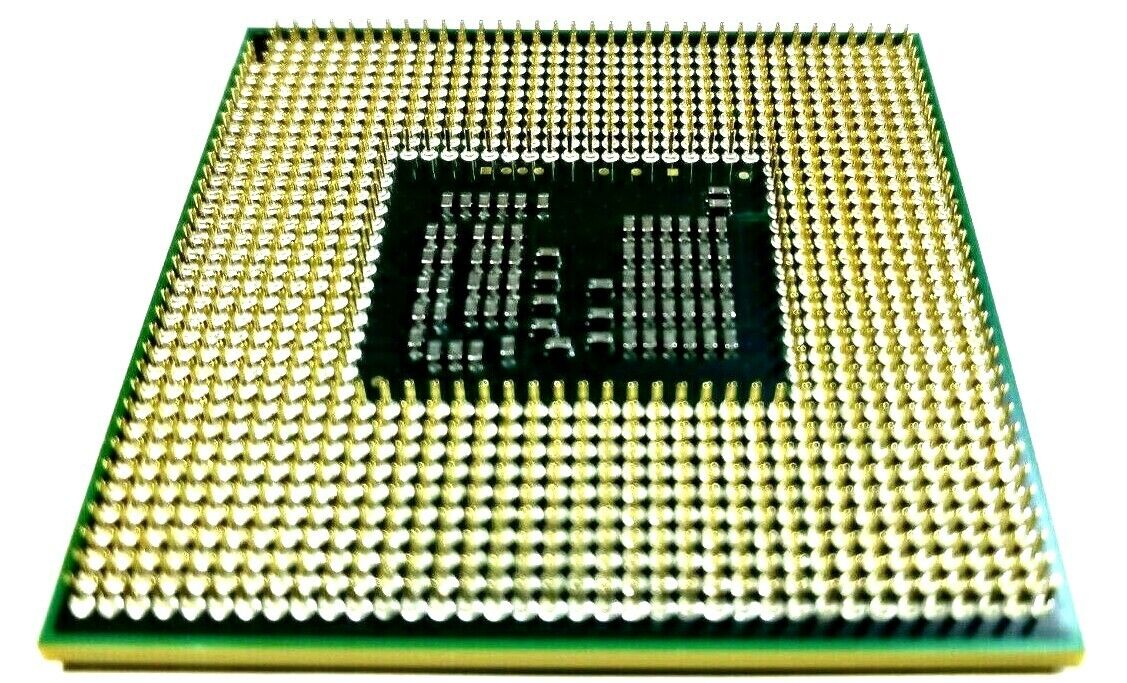

CPU: MOBILE Intel: Socket RPGA988A, i5-450M 2.4GHz SLBTZ Arrandale
CPU: MOBILE Intel: Socket RPGA988A, i5-450M 2.4GHz SLBTZ Arrandale is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Special Notice Regarding CPUs:
Special Notice Regarding CPUs:
CPUs have been removed from recycled items. All guaranteed to work.
Delivery and Shipping
Delivery and Shipping
We pride ourselves with picking and shipping the next day
CPU: MOBILE Intel: Socket RPGA988A, i5-450M 2.4GHz SLBTZ Arrandale
Notice:
Fitting a CPU to a new laptop is usually not possible because in most modern laptops, the CPU is soldered directly onto the motherboard, meaning you cannot simply remove and replace it with a different one.
Description
Description
CPU: MOBILE Intel: Socket RPGA988A, i5-450M 2.4GHz SLBTZ Arrandale
Essentials
-
Product CollectionLegacy Intel® Core™ Processors
-
Code NameProducts formerly Arrandale
-
Vertical SegmentMobile
-
Processor Numberi5-450M
-
StatusDiscontinued
-
Launch DateQ2'10
-
Lithography32 nm
Performance Specifications
-
# of Cores2
-
# of Threads4
-
Processor Base Frequency2.40 GHz
-
Max Turbo Frequency2.66 GHz
-
Cache3 MB Intel® Smart Cache
-
Bus Speed2.5 GT/s
-
TDP35 W
Supplemental Information
-
Embedded Options AvailableNo
-
DatasheetView now
Memory Specifications
-
Max Memory Size (dependent on memory type)8 GB
-
Memory TypesDDR3 800/1066
-
Max # of Memory Channels2
-
Max Memory Bandwidth17.1 GB/s
-
Physical Address Extensions36-bit
-
ECC Memory Supported ‡No
Processor Graphics
-
Processor Graphics ‡Intel® HD Graphics for Previous Generation Intel® Processors
-
Graphics Base Frequency500 MHz
-
Graphics Max Dynamic Frequency766 MHz
-
Intel® Flexible Display Interface (Intel® FDI)Yes
-
Intel® Clear Video HD TechnologyYes
-
Intel® Clear Video TechnologyYes
-
Macrovision* License RequiredNo
-
# of Displays Supported ‡2
Expansion Options
Package Specifications
-
Sockets SupportedPGA988
-
Max CPU Configuration1
-
TJUNCTION105°C
-
Package SizerPGA 37.5mmx 37.5mm, BGA 34mmx28mm
-
Processing Die Size81 mm2
-
# of Processing Die Transistors382 million
Advanced Technologies
-
Intel® Turbo Boost Technology ‡1.0
-
Intel® vPro™ Platform Eligibility ‡No
-
Intel® Hyper-Threading Technology ‡Yes
-
Intel® Virtualization Technology (VT-x) ‡Yes
-
Intel® Virtualization Technology for Directed I/O (VT-d) ‡No
-
Intel® VT-x with Extended Page Tables (EPT) ‡Yes
-
Intel® 64 ‡Yes
-
Instruction Set64-bit
-
Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2
-
Idle StatesYes
-
Enhanced Intel SpeedStep® TechnologyYes
-
Thermal Monitoring TechnologiesYes
-
Intel® Fast Memory AccessYes
-
Intel® Flex Memory AccessYes
Security & Reliability
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Changing a Laptop CPU: An Example
Laptops and CPUs are Fragile and or Prone to Damage so Take Care! xdeal.com.au is not responsible for damaged property or personal injury. Use this site, videos, and any advice at own risk. You need to ensure that the CPU is compatible with your laptop and has the same socket. Youtube as much as possible before commencing!
